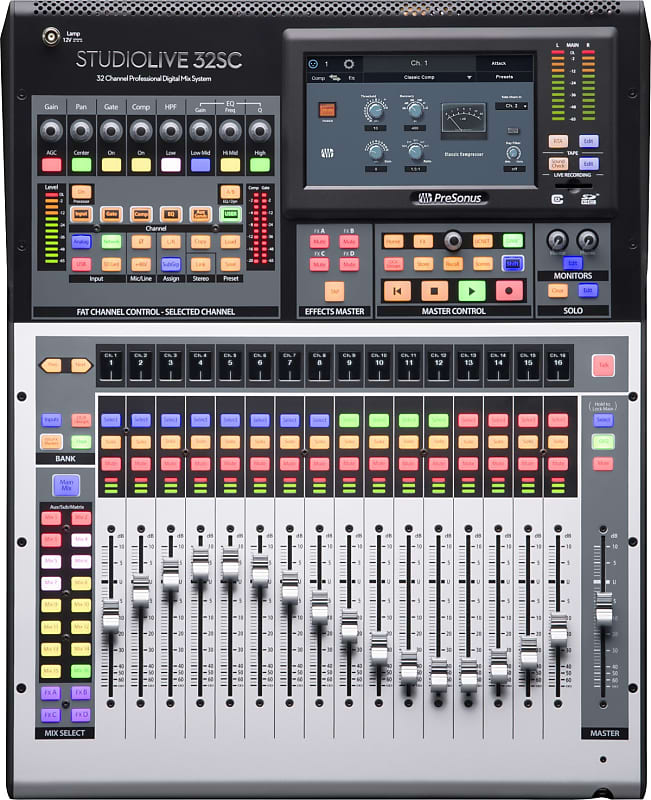

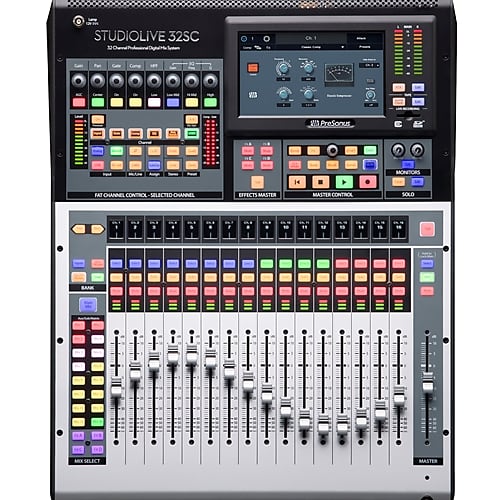

PreSonus® StudioLive® Series III 32SC Digital Console Mixer, Gray

PreSonus® StudioLive® Series III 32SC Digital Console Mixer, Gray...

A 32-channel powerhouse packed inside a portable, rack-mountable frame, the StudioLive 32SC is a compact
digital mixer that can compete with its bigger brothers, particularly when you consider its price. Thanks to AVB, it's
easily expandable—readily networking with EarMix 16M personal monitor mixers for customized onstage mixes and
PreSonus NSB-series stage boxes for additional inputs. The 32SC's 16 FlexMixes can be individually configured to
function as aux buses, subgroups, or matrix mixes—your routing options will border on limitless. The Fat Channel
processing section employs expandable, plug-in options with vintage-style EQ and classic compression options on
every input channel and output bus.

The 32SC also ships with PreSonus Capture® recording software, which can be run directly on your mixer or Windows
or Mac computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the
ultimate redundant live recording rig.

Features:
Electronics
VOLTAGE 100-120V
POWER REQUIREMENTS 85W (Continuous)

Performance
DIGITAL AUDIO BIT DEPTH 24
DIGITAL AUDIO DYNAMIC RANGE 115 dB (A-Weighted, 48 kHz)
DIGITAL AUDIO REFERENCE LEVEL FOR ZERO DBFS +18 dBu
DIGITAL AUDIO TOTAL SYSTEM LATENCY 1.9 ms

Inputs
LINE INPUT CONNECTION TYPE 1/4" TRS, Balanced
LINE INPUTS FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain)
LINE INPUTS IMPEDANCE 10 kΩ
LINE INPUTS MAXIMUM LEVEL +18 dBu
LINE INPUTS SIGNAL TO NOISE RATIO 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
LINE INPUTS TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced
MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz at Unity Gain)
MICROPHONE PREAMP FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain)
MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to +60 dB (±1 dB)
MICROPHONE PREAMP INPUT IMPEDANCE 1 kΩ
MICROPHONE PREAMP MAXIMUM INPUT LEVEL +12 dBu (Unity Gain)
MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
TAPE MAXIMUM INPUT LEVEL +12 dBu, ±0.5 dBu

Outputs
HEADPHONE OUTPUTS FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain)
HEADPHONE OUTPUTS MAXIMUM OUTPUT 150 mW /Channel at 60 Ω
HEADPHONE OUTPUTS SIGNAL TO NOISE RATIO 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
HEADPHONE OUTPUTS TOTAL HARMONIC DISTORTION 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
LINE OUTPUTS CONNECTION TYPE 1/4" TRS, Balanced
LINE OUTPUTS MAXIMUM OUTPUT LEVEL +18 dBu, ±0.5 dBu
LINE OUTPUTS OUTPUT IMPEDANCE 100 Ohms
TAPE MAXIMUM OUTPUT LEVEL +18 dBu, ±0.5 dBu
TAPE OUTPUT IMPEDANCE 100 Ohms

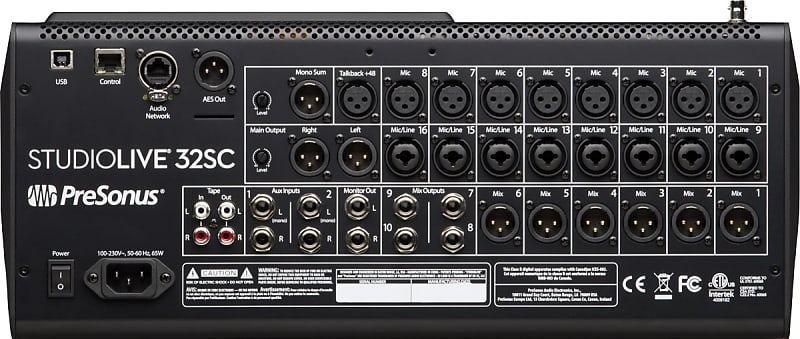

Hardware
DIGITAL AUDIO AES EBU OUTPUT XLR Male
DIGITAL AUDIO AVB AUDIO NETWORK PORTS Locking XLR Ethernet
DIGITAL AUDIO NETWORK CONTROL PORTR J-45
DIGITAL AUDIO USB RECORDING PORT USB 2.0, Type-B
TAPE CONNECTION TYPE RCA Female, Unbalanced (Stereo Pair)
