PreSonus

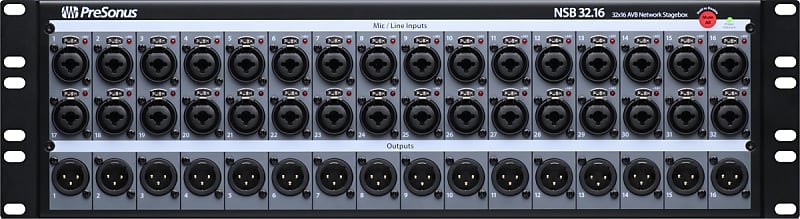

PreSonus® NSB 32.16 Networked Stage Box, Black

PreSonus® NSB 32.16 Networked Stage Box, Black

Regular price $1,299.99 USD
Regular price $0.00 USD Sale price $1,299.99 USD
Sale Sold out
PreSonus® NSB 32.16 Networked Stage Box, Black...

Inputs and outputs wherever you need them.

The PreSonus® NSB 32.16 networked stage box lets you put analog I/O for your StudioLive® Series III digital mixer
wherever you need it. Equipped with 32 digitally controlled XMAX mic preamps, 32 balanced line level inputs, 16 analog
outputs, and 2 stereo AES3 digital outputs, the NSB 32.16 integrates seamlessly into StudioLive Series III digital mixers with
a single Ethernet connection. Remotely control input trim, phantom power, and more, directly from your StudioLive Series III
console or UC Surface remote mixing software on your tablet or laptop.

Powerful connectivity that's designed to be shared.

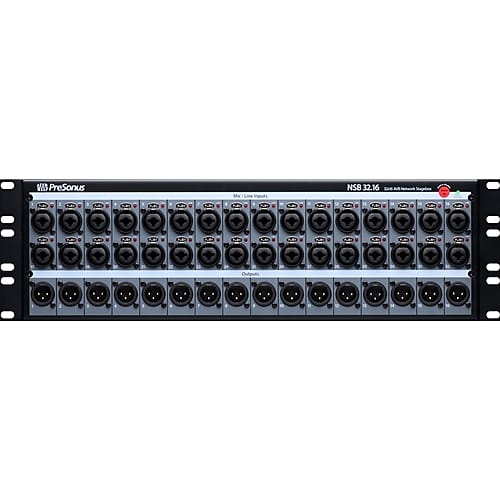

The NSB 32.16 networked stage box is loaded with 32 versatile locking combo jacks. Connect your microphones to the digitally
controlled XMAX preamps or use the balanced ¼" TRS inputs to connect your line level devices — the NSB 32.16 can handle it all.
The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation, every mixer gets
individual gain control without affecting the front-of-house mix. An NSB-series stage box can provide inputs for more than one
StudioLive Series III digital mixer on an AVB network. You can send audio from the stage to the front-of-house mixer, the mixer at
monitor position, the mixer in the broadcast booth, and more, all from the same NSB 32.16 on stage. Because control of the NSB
32.16 preamps is handled remotely, a single mixer must be given master control over NSB 32.16 preamp levels and phantom power.

With some networked systems, every mixer on the network must share the same preamp level. Not so with the StudioLive Series III
ecosystem: NSB-series stage boxes have onboard DSP that provides gain compensation on every input that allows every mixer on
the network to make gain adjustments relative to the level set on the master mixer. In this way, every mixer can adjust the preamp
level locally for optimal gain staging.

Rugged stage box, flexible installation.

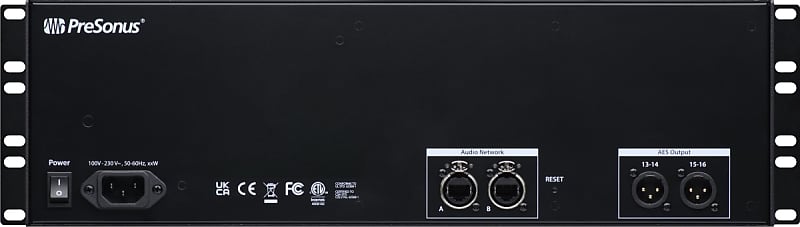

PreSonus built the NSB 32.16 inside a rugged steel chassis designed to survive the rigors of the most demanding tours. The NSB
32.16 features adjustable rack ears, so you can choose between flush or recessed as well as front or rear I/O installation to best
fit your rack. Thanks to the standard 3U 19-inch design, the NSB 32.16 is also compatible with most universal stage pockets for
permanent installations.

A complete networked solution.

StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance
each other, these products are at the forefront of AVB networking technology. The NSB 32.16 can be used alone or with many other
NSB-series stage boxes to add remote audio to one StudioLive Series III digital mixer or to multiple mixers on the same network. For
StudioLive Series III mixers that have limited onboard analog I/O, the NSB 32.16 provides a simple expansion to a full 32- or 64-channel
mixing system.

Features:
Electronics
VOLTAGE 100-120V

Performance
DIGITAL AUDIO DYNAMIC RANGE 115 dB (A-Weighted, 48 kHz)

Inputs
LINE INPUT CONNECTION TYPE 1/4" TRS, Balanced
LINE INPUTS FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain)
LINE INPUTS IMPEDANCE 10 kΩ
LINE INPUTS MAXIMUM LEVEL +18 dBu
LINE INPUTS SIGNAL TO NOISE RATIO 94 dB
LINE INPUTS TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced
MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz at Unity Gain)
MICROPHONE PREAMP FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain)
MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to +60 dB
MICROPHONE PREAMP INPUT IMPEDANCE 1 kΩ
MICROPHONE PREAMP MAXIMUM INPUT LEVEL +12 dBu (Unity Gain)
MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Hardware
DIGITAL AUDIO AVB AUDIO NETWORK PORTS Locking XLR Ethernet
