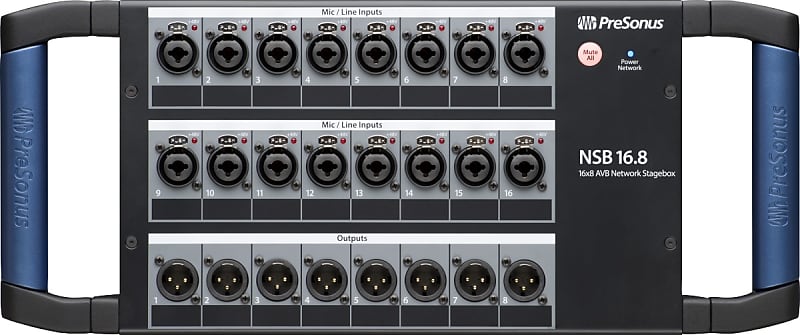

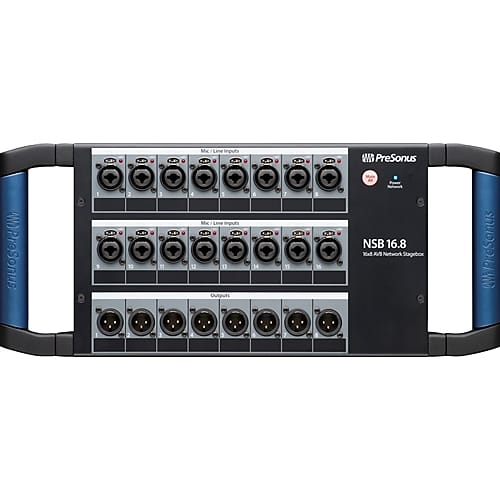

PreSonus® NSB 16.8 Networked Stage Box 16 Inputs x 8 Outputs
PreSonus® NSB 16.8 Networked Stage Box 16 Inputs x 8 Outputs
Regular price
$899.99 USD
Regular price
$0.00 USD
Sale price
$899.99 USD
Unit price
/
per
PreSonus® NSB 16.8 Networked Stage Box, Black...
Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 16.8 stage box offers
16 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared
input scenarios. You also get 16 direct inputs via AVB. All inputs can be controlled from a StudioLive Series III console
and from free PreSonus UC Surface software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch
lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the

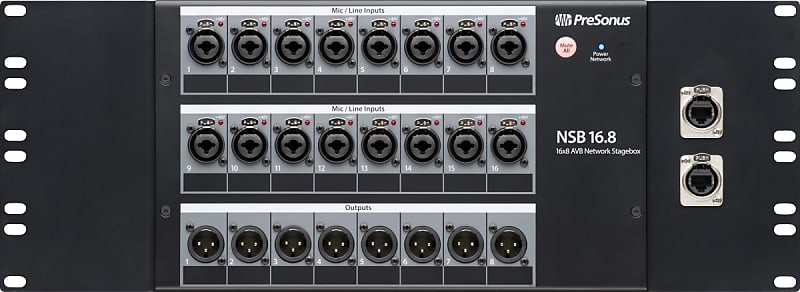

NSB 16.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.
Features:
Electronics
VOLTAGE 100-120V
Performance
DIGITAL AUDIO DYNAMIC RANGE 115 dB (A-Weighted, 48 kHz)
Inputs
LINE INPUT CONNECTION TYPE 1/4" TRS, Balanced
LINE INPUTS FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain)
LINE INPUTS IMPEDANCE 10 kΩ
LINE INPUTS MAXIMUM LEVEL +18 dBu
LINE INPUTS SIGNAL TO NOISE RATIO 94 dB
LINE INPUTS TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced
MICROPHONE PREAMP COMMON MODE REJECTION RATIO 65 dB (1 kHz at Unity Gain)
MICROPHONE PREAMP FREQUENCY RESPONSE 20-20 kHz (±0.5 dBu at Unity Gain)
MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to +60 dB
MICROPHONE PREAMP INPUT IMPEDANCE 1 kΩ
MICROPHONE PREAMP MAXIMUM INPUT LEVEL +12 dBu (Unity Gain)
MICROPHONE PREAMP SIGNAL TO NOISE RATIO 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
MICROPHONE PREAMP TOTAL HARMONIC DISTORTION <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Hardware
DIGITAL AUDIO AVB AUDIO NETWORK PORTS Locking XLR Ethernet
