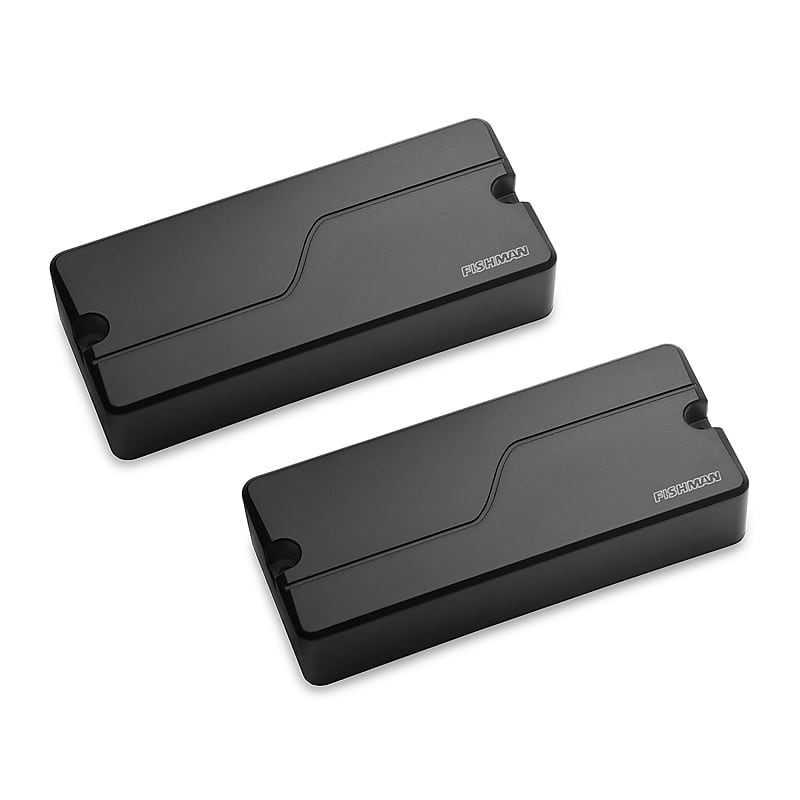

Fluence Signature Series Tosin Abasi 7-String Pickup Set, Black (soapbar mount)

Multiple Coil Combinations With Different Voices...

The Tosin Abasi Signature Set is unique in the way it makes multiple coil combinations available in
conjunction with the different voices. Even the magnetic circuit is tuned, with pole pieces and a blade
magnet combined in the neck position for authentic single coil interaction.

For neck and bridge, Voice 1 begins with Fishman's Modern recipe and fattens up the low midrange while
adjusting the output level to Tosin's taste. Voice 2 is bright and clean, with extremely fast and detailed top
end for percussive attack and crystalline cleans. In the bridge, Voice 2 is a classic rock and hard rock tone
that melts into any rig or mix. The cutting midrange of an overwound humbucker with the glassy highs of a
vintage P.A.F. Then, the single coil modes each have their own unique Voice. The neck pickup is reminiscent
of a vintage Tele, while the bridge pickup focuses on the quacky "2 & 4" tones.

Features
Tosin Abasi Signature Pickup Set Includes:
1 ceramic pickup (bridge position)
1 alnico pickup (neck or middle position)
All components required to achieve Tosin's wiring scheme (minus pickup selector)
Volume and Tone pots
Push-pull Voice Selector pot for use in Volume or Tone position
All wiring required for installation
Ceramic Humbucker Specs
Peak Frequency:
Voice 1: 750 Hz
Voice 2: 1.4 Khz
Voice 3: (Single Coil) 7.8khz
Magnetic Material: Ceramic Viii
Magnetic Circuit: Bar Magnets With Blades
Gauss Strength: 140 Gauss Strength At String
Output Impedance: 2 K
Current Draw: 2.5ma
Alnico Humbucker Specs
Peak Frequency:
Voice 1: 420hz
Voice 2: 1.6khz
Voice 3: (Single Coil) 5.8khz
Magnetic Material: Alnico Iv / V
Magnetic Circuit: Alnico Iv (Poles) / Alnico V (Bar Magnet)
Gauss Strength: 120 Gauss Strength At String
Output Impedance: 2 K
Current Draw: 2.5ma
