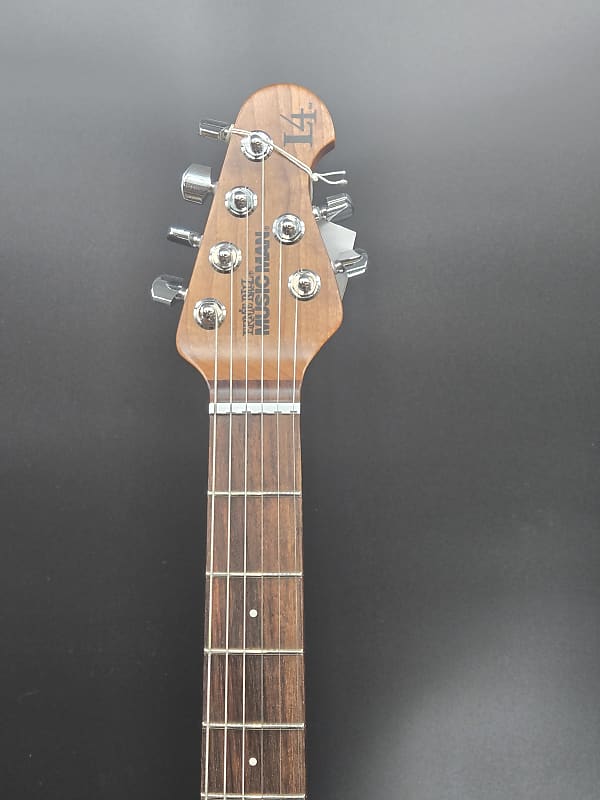

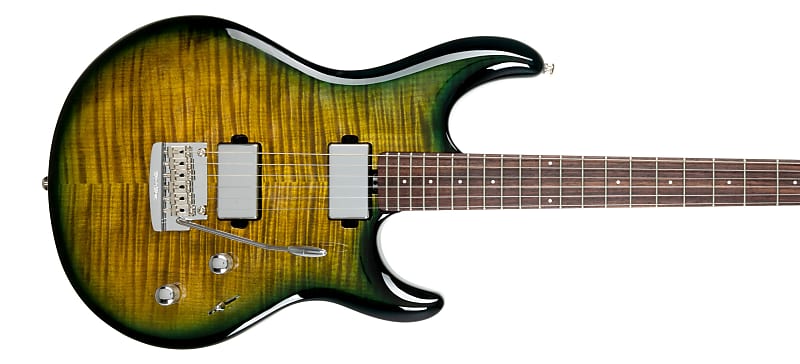

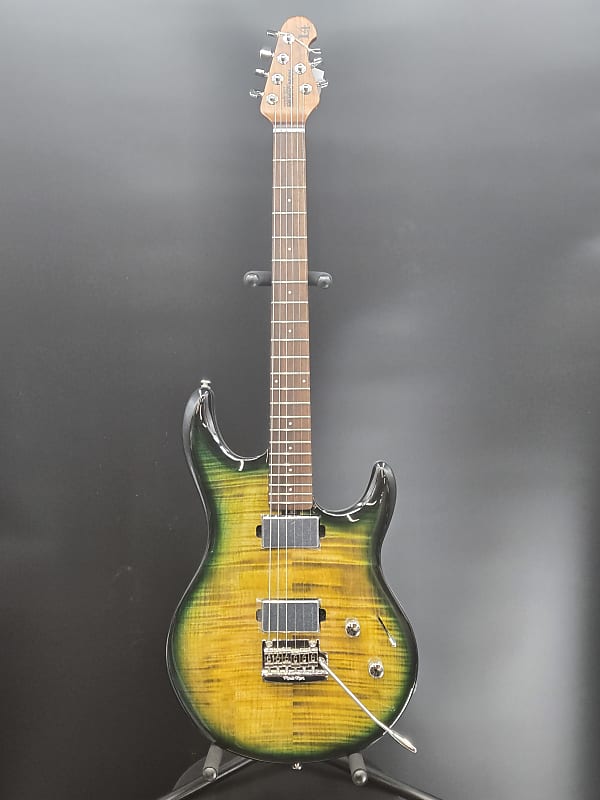

Ernie Ball Music Man Luke 4 Maple Top - HH HT Pickups - Gator Burst - Roasted Figured Maple/Rosewood - Chrome Hardware

Ernie Ball Music Man Luke 4 Maple Top - HH HT Pickups - Gator Burst...

Celebrating three decades with Grammy award-winning guitarist and signature artist Steve Lukather,
the Ernie Ball Music Man company is proud to announce the arrival of the new Luke 4 HH maple top
signature guitar. This fourth installment in the Lukather signature line of instruments features a
lightweight Okoume body, a premium figured maple top with a figured roasted maple neck, and a rosewood
fingerboard. The Luke 4 maple top is outfitted with custom Music Man pickup technology, delivering an
incredibly dynamic and responsive playing experience. The pickups can achieve an ultra-high-output,
powerful, low-end response while retaining a distinctively clean, clear tone at lower volume levels.
The Luke 4 HH shares many of the standard specifications of the original Luke guitars, including a
double-cut contoured body, a roasted figured maple neck, 22 nickel frets, 5-way switching, adjustable
12db boost, a Music Man vintage floating tremolo and ships in a Mono case.

SpecificationsLuke 4 HH Maple Top
ModelLuke 4 HH Maple Top
Size12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Body WoodOkoume with Flame Maple Top
Body FinishHigh gloss polyester
BridgeMusic Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles
Scale Length25.5"
Neck Radius12"
Frets22 - Low profile, wide - Nickel
Neck Width1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at
the 1st fret, .945" at the nut with the Soft "V" Profile.
Neck WoodFigured Roasted Maple
FingerboardRosewood
Fret MarkersWhite Corian 1/8" Dots
Neck FinishGunstock oil and hand-rubbed special wax blend

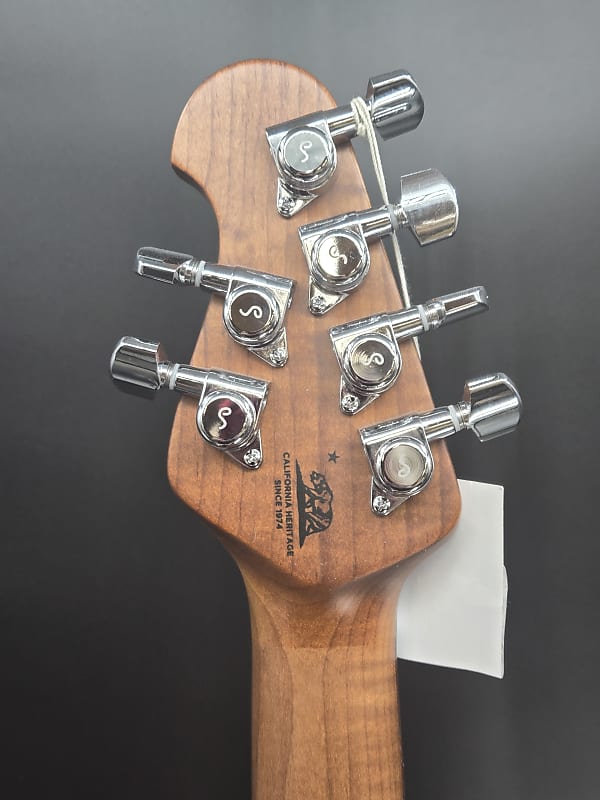

Tuning MachinesSchaller M6-IND locking
Truss RodAdjustable - no component or string removal
Neck Attachment5-bolt, sculpted neck joint
Electronic ShieldingGraphite acrylic resin coated body cavity and aluminum control cover
ControlsMusic Man® designed preamp with transparent buffered output and switchable volume knob
push/push 20+ dB gain boost, tone knob and 5-way selector switch
SwitchingVolume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
PickupsBridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker
StringsErnie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
