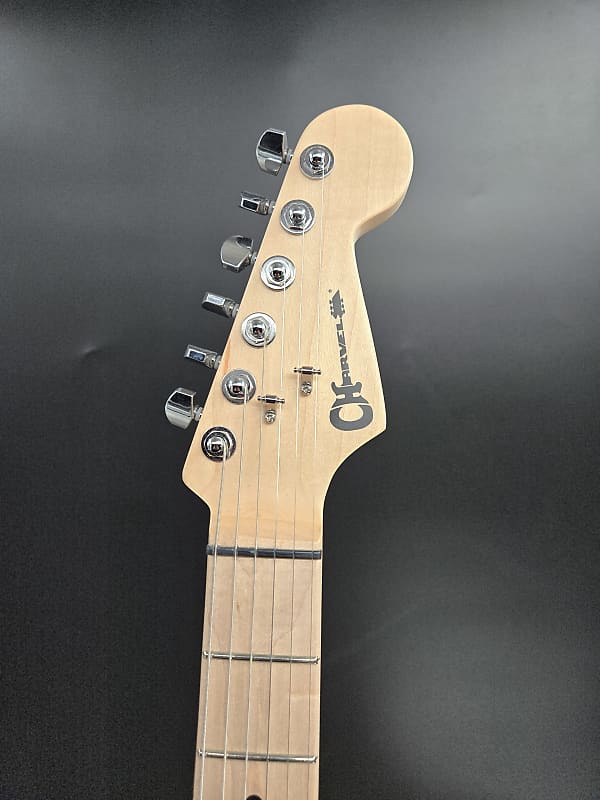

Charvel Pro-Mod San Dimas® Style 1 SHOWROOM DEMO HSS HT M, Maple Fingerboard, Platinum Pearl

CHARVEL PRO-MOD SAN DIMAS® STYLE 1 SHOWROOM DEMO HSS HT...

The Pro-Mod Series continues upon Charvel's storied legacy of innovative excellence in
high-performance guitar design, offering the latest technology and top-notch features that
modern players need. An ideal instrument for dazzling high-speed playing, the all-new
Pro-Mod San Dimas® Style 1 HSS HT M boasts scorching sound, stunning style and
grin-inducing playing feel and performance.

Features:
Neck
Fingerboard Material Maple
Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Headstock Licensed Fender® Stratocaster®
Neck Construction Bolt-On with Graphite Reinforcement
Neck Finish Hand-Rubbed Satin Urethane
Neck Material Maple
Neck Shape Speed Neck with Rolled Fingerboard Edges
Number of Frets 22
Nut Material Graph Tech® TUSQ® XL
Nut Width 1.6875" (42.86 mm)
Position Inlays Black Dot
Side Dots Black
String Nut Graph Tech® TUSQ® XL
Truss Rod Dual-Action with Wheel
Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel

Body
Body Alder
Body Finish Gloss
Body Material Alder
Body Shape San Dimas® Style 1
Body Style Solid Body

Bridge Charvel® HT6 String-Through-Body Hardtail
Control Knobs Knurled Flat-Top
Hardware Finish Chrome
Neck Plate 4-Bolt Serialized
Pickguard None
Pickup Covers Parchment
Strap Buttons Standard
String Trees Fender® Standard String Guide
Strings Nickel Plated Steel (.009-.042 Gauges)
Switch Tip White
Tuning Machines Charvel®-Branded Die-Cast Locking

Electronics
Bridge Pickup Seymour Duncan® JB™ TB-4
Controls Volume, No-Load Tone
Middle Pickup Seymour Duncan® Custom Flat Strat® SSL-6 Single-Coil
Neck Pickup Seymour Duncan® Custom Flat Strat® SSL-6 RWRP Single-Coil
Pickup Configuration HSS
Switching 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup,
Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup
